M1823 Grip Module - Aluminum
DROPS COME IN THE BEGINING OF EACH MONTH
Designed with precision and crafted for unmatched performance, this is a must-have upgrade for any serious shooter.
High Demand: These grip modules sell out fast due to their popularity. If marked as "on backorder," rest assured—our manufacturing process is in full swing, and we’re shipping on a first-come, first-served basis.
- Weight: 0.52 pounds (8.4 oz)
- Material: 7075 T6 Aluminum
- Finish: Type III Hard Anodizing in Black, and Brouwer Burnt Bronze
- Full-Length Dust Cover
- Aggressive competition-style texturing.
- Fastener-less Rear Dust Cover Insert
- Compatible with our existing Magwells!
Compatibility:
Sig Sauer P320 9mm / 357 sig / 40
Fits flush with 4.7″ barrel slides
Full size magazines with current gen “square detent base pads”
current gen slide stop / release lever. Limited 10rd magazines also work because they still utilize the full size magazine body.
Pairs well with
M1823 Grip Module - Aluminum
The Ultimate P320 Upgrade
The Brouwer M1823 Grip Module corrects the main ergonomic issues with the P320 platform – high bore axis, rounded slippery grip, short beavertail. The modern 2011 pistol is the standard for shooting performance, control, and ergonomics. With the design of the SIG P320 series, we were able to bring some of that performance and control to polymer pistols.
Brouwer Grip Module Summary Of Improvements
Improved Handling:
The Brouwer P320 Grip Module greatly improves point of aim repeatability by utilizing ergonomics nearly identical to the 2011. The front strap angle has been changed to 107.5 degrees, with a back strap angle of 67.5 degrees to cause the pistol to seat into the hand when gripped. This geometry aids the shooter by placing the bore axis in a natural position.
The beaver tail has been moved up to reduce the height over bore while still maintaining the full functionality of the SIG P320 fire control group. The beaver tail has been profiled to draw the hand into the gun while providing a large surface to aid in reducing the effort to mitigate recoil. The rear profile of the beaver tail has been shaped to reduce catching the web of the user’s hand when gripping the gun promoting quick grip acquisition.
A large trigger guard was kept to ensure use with gloves in cold weather and reprofiled to remove unnecessary features. The profile of the trigger guard was moved up as high as possible to improve grip index relative to the beavertail while maintaining clearance for the P320 trigger. The tolerancing for the mag release button has been reduced to combat dust ingress.
Factory Compatibility
The grip module is designed to use all factory equipment that comes with a SIG P320: Fire control unit, magazine catch (reversible), slide stop, take down pin. The module accepts factory SIG P320 magazines (9mm) 17rd, and 21rd. The module is compatible with both Safety Selector equipped P320 and without. Be sure to order the correct version!
Holster Compatibility
The M1811 grip module has been provided to the following manufacturers. They have tested the M1811 with their products and provided their feedback and assessment of compatibility.
Safariland:
Fully compatible.
Haley Strategic:
Incog X fully compatible.
AlienGEAR:
Rapid Force, Photon both light bearing and non are fully compatible. The cloak series will vary depending on the configuration.
RDR Gear:
All IWB are fully compatible.
Grip Texture
Simulated side scales similar to the 1911 are present to stiffen the grip and fill the natural void in the palm of the hand without increasing the front and back strap radii.
Both the front and back straps feature meticulously machined, aggressive grip patterns, ensuring a rock-solid, reliable grip even in the harshest shooting environments.
Improved Magwell Design
The grip modules magwell has been profiled to ensure a loaded magazine can be inserted at up to 45 degrees out of rotation, and 20 degrees out of axial alignment with the magwell.
Made from 7075 T6 Billet Aluminum
The finished M1823 modules will be fully CNC milled from Billet 7075 Aluminum coated with Type III Hard Anodizing! Available in Black and Brouwer Burnt Bronze.
They will feature all the same geometry as our existing M1811 grip modules with some additional features.
Magwell Extension
The grip module is capable of accepting an additional flared magwell extension should the user desire.
Accessory Rail
A MIL-STD-1913 Picatinny rail is maintained under the slide in front of the trigger guard. Note, installation of a light, or under barrel attachment adjusted for a P320 may require a universal mount adapter as the trigger guard has been improved.
Note: please use the “U” adapter plate for surefire products.
Accessory Compatibility
- The M1823 grip module is designed to fit flush with full size slides 4.7 inch or longer. It is also fully compatible with shorter slides with compensators.
- The module is compatible with 17 and 21 round magazines. They must have the newer square peg base pads which feature beveled sides. The older round peg base pads will not work.
Colors:
M1823 in aluminum is available coated in Type III Hard Anodized Black and Brouwer Burnt Bronze.
First of all, gorgeous. Fit and finish are perfect. However…. The sunburst texture is incredibly sharp. Nearly painful to shoot. But the price is just too high, especially when the AXG and TXG modules are half the price. Wanted to support a local Reno company but I’m just not sure its $600 good.
Perfect. This is now my favorite grip module. The fit is perfect in my hand—wow, it was definitely worth the wait. The quality, ergonomics, and overall feel exceeded my expectations. Highly recommended.
⭐⭐⭐⭐⭐
I haven’t had a chance to put together my build with the 1823 Aluminum. But just holding that grip in my hand i can tell its one of the best i could buy i love the aggressive grip texture. This going on my duty weapon gives me peace of mind and greater trust in my tools

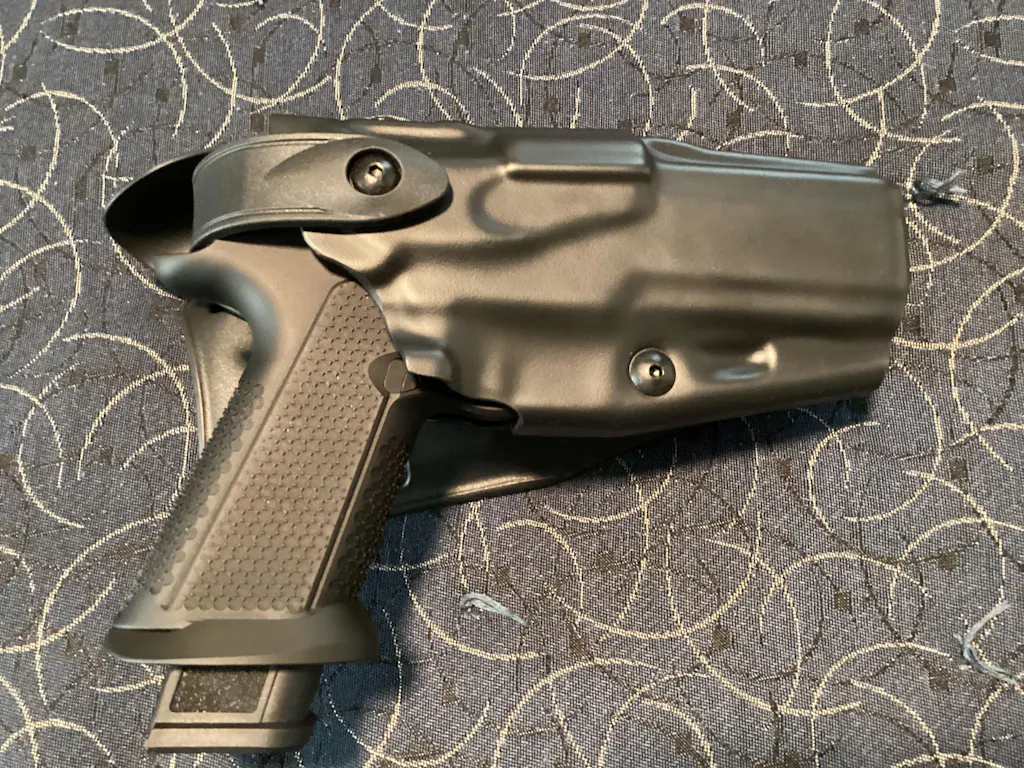

Very well made and fits my Safariland Level 3 holster perfectly.
I got the aluminum 1823 grip module for my M17X to replace the factory grip module. I was hesitant to order but after receiving the 1823 and installing it I couldn’t be happier. The difference in the grip texture in itself is phenomenal. I feel like my hands are glued to the grip instead of sliding around. The grip angle is so much better, too. It makes for much faster target acquisition on follow up shots. The machining and finish are superb. This is more than just a grip module. It really is a manufacturing marvel. All of my magazines feed and seat flawlessly.
I just received my M 1823 aluminum module. After looking at all of the options out there, of which there are a lot, this seemed the only one to get. Boy was I right. The fit and finish are spot on. This is truly what a work of art is.
Now when I bring it up to shoot the red dot is right on center. Amazing the difference the change of angles makes on sighting.
This is an incredible upgrade over the stock grip module of my Sig M17. The grip itself is incredible but the whole thing is that the balance is perfect. I can’t imagine a better upgrade for the M17 than this.
I also added your matching Magwell,the Align Tactical P320
Thumb Rest Takedown Lever and the Align Tactical Offset Extended Magazine Release all of which are excellent pieces
Thanks for making such a great grip module.
This grip is wild. Feels solid and stable like a 2011 grip.
The right balance between aggressive grippiness but comfortable in the hand.
Yet to feel anything for the 320 or platform that comes even close. Like it so much will get one for my 365 when they come out!
Talk about a total change in the feeling and grip of your firearms. The aggressive grip texture took me by surprise but I do get an amazing purchase on the gun. The grip angle allows my hand to get higher up on the guns' beavertail for better recoil management. I added an align tactical takedown lever / gas pedal but the grip is so damn good, hell I don't even feel that I need it. Cost was a little pricey but damn well worth it in my regard. Highly recommend. Also, let me add that the customer service was excellent.
Could not be happier with the module. Plenty of Grip, Great shooting ergonomics and Extremely High Quality. Brouwer knows what they are doing. On top of the product, the team has been amazing to work with.
Amazing grip module with the perfect grip angle. One of the better looking pistols in the collection.
Such a game changer. I went from being a complete loser. You know, not getting any of the girls, comming in 10th place or worse in matches, and my dog not respecting me to coming in first place every match. My dog does what I tell him to now. I got married and my car even gets 10 mpg better fuel economy. I can't recommend this enough. If your on the fence, let me tell you, JUST DO IT!
This hands down is the best grip module for the P320! Very happy with my purchase.
I've fired the standard Spector comp as well as with the Icarus grip modules and I feel like this is superior to both of those products. The serrations in the aluminum have a distinctive bite to them but they're not so aggressive that they cause pain or discomfort as long as you don't have baby powder hands. If you work with your hands or shoot and train much and have leather calluses like most guys this is the right grip module. You cannot throw this thing out of your hand, not to mention the way it looks. Well worth the money
Awesome upgrade to my Sig P320, the look and feel of the M1823 Grip Module is a game changer to my competition gun. It's like holding a 1911 in my hand only better. The M1823 is a more ergonomic level feel as I bring up to my eye plane, low recoil to quickly get me back on target for double taps. Can't wait for the first match comming up this spring. This is a must have for your sig.
Lots of fun, really pretty, and feels great when shooting. I love it.
Excellent Module, can’t wait for the 3.9
Shits the tits. Very comfortable shooting experience with the added length and weight. Great ergos just like the shorter polymer grip module.
The ergonomics feel like a perfect fit in my hand, and the aggressive texturing gives me exactly the level of traction I prefer. It completely changes the feel of my full-size P320 and makes the whole setup shoot exceptionally well. Fit, feel, and control are all outstanding. I would highly recommend it to anyone looking to improve the grip and handling of their P320... Now we just need Brouwer to make one for the Springfield Echelon.
Color is great, grip shape is awesome, feels really good. Stipling is pretty good, almost too aggressive, but definitely won’t slip. Fit my P250 pretty well, but I did have to shave the back side of my trigger to get it to fully function without hitting the rear of the trigger housing.
Exceptional grip module love the way it looks and feels
Great product solid and works as advertised
Great aggressive texture on grip, balanced very well as compared to the plastic good piece
I love the Brouwer grips. I have the base model and now the Aluminum grip. The angle is the best for natural point of aim with my grip. the Grip texture is quite aggresive compared to the base, spikey and grips the hand. I will not that while the the polymer grip fits in my competition holsters, the aluminum grips must be a little wider as it is very tight in my Carey Conceal holster and GX Holster, works fine in the Ghost Hyrda P+, and the Black Scorpion competition holster. Great grip modules, may try the laser sculpted 1811 polymer next.
I appreciate the customer service.
